Automatic block making machine

Langfang Nianpeng Mechanical Equipment Processing Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic block making machine in China. If you're going to buy high quality automatic block making machine, welcome to get pricelist and quotation from our factory. For price consultation, contact us.



Basic Info.

Model NO.	QT12-15	Certification	CE, ISO, SGS
Customized	Customized	Automatic Grade	Automatic
Type	Vibration Molding	Mixer	Jq500
Moulding Area	1340*840mm	Workshop	300m2
Transport Package	Yes	Specification	2*40HQ container
Trademark	DONYUE	Origin	China
HS Code	8474802000	Production Capacity	2400PCS/Hour (400*200*200mm)



Product Description

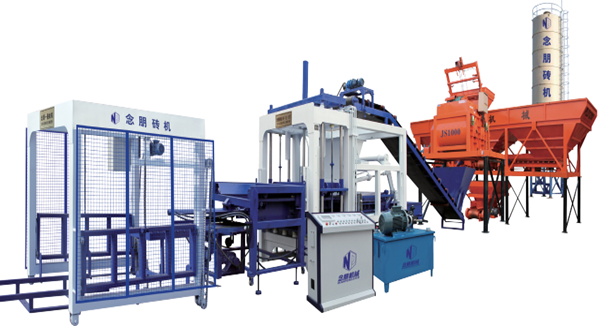

QT12-15 Automatic concrete block making machine block making machinery

Products Describtion



Main Features

1) The motor for the host machine is Germany SIEMENS brand or ABB brand
2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.



Main Specifications

Technical Parameter
Dimension of host machine	3800mm*2500mm*3550mm	Power of host machine	56.2kw
Weight of host machine	13.5T	Vibration force	100-130KN
Molding area	1196x880mm	Mixer Model	JS750
Water consumption	10-20T/Day	Pallet size	1400*900*30MM
Workshop	260M2



Production Capacity

size(L*W*H)	pcs/mould	pcs/hour	pcs/8hour
400*200*200mm	12	2160-2880	17280-23040
400*150*200mm	15	2520-2940	20160-23520
200*110*60mm	35	6300	50400

Cement Silo   Length:11M   Capacity: 50T   Diameter:2.15M   Total weight:5t

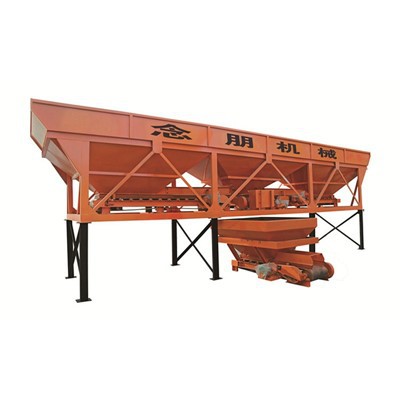

Batching Machine Weigh bucket capacity:1200L Productivity:56m³/h Patching precision:±1% Max weighing capacity : 3 T Quantity of material matching :3 set Work loading height :3000 mm Feeding belt speed: 1s/m Power:12 kw Weight:4 T Length*width*higth :9000X2200X3500mm



Product Application

1. QT12-15 fully moulds concrete brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. QT12-15 fully moulds concrete brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
4. Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.

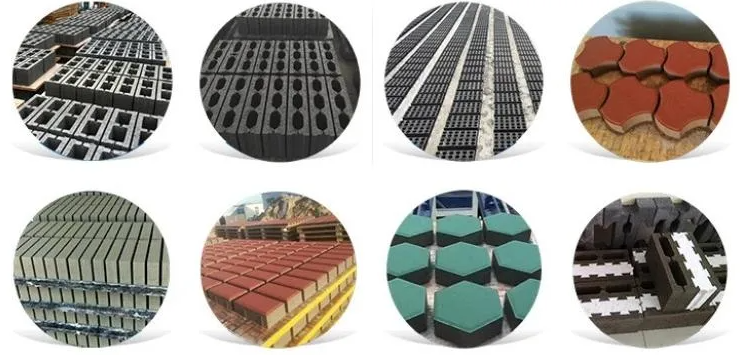

Finished block
