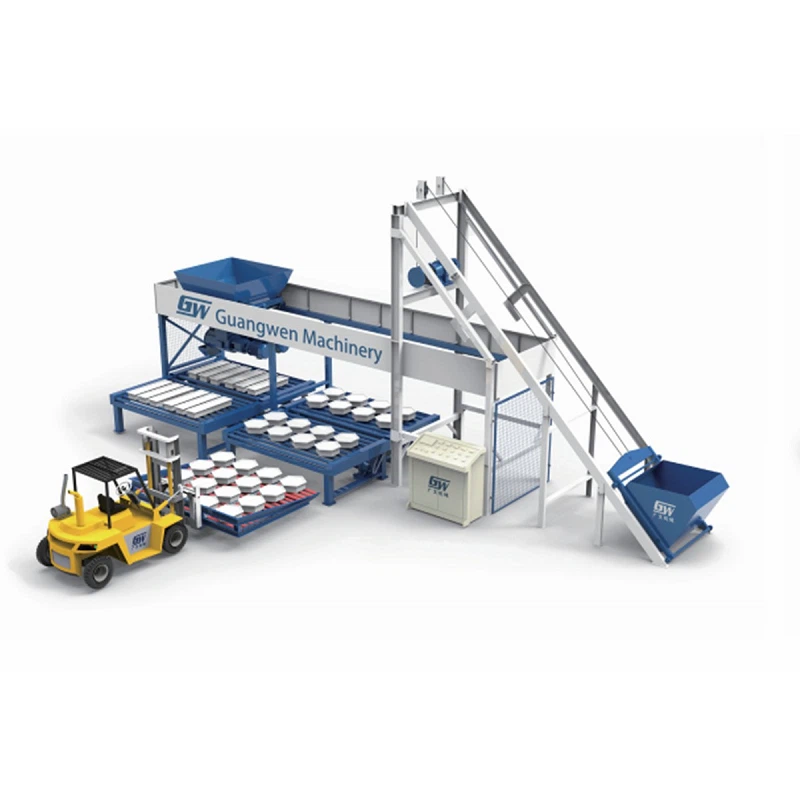

Concrete hollow brick machine

Langfang Nianpeng Mechanical Equipment Processing Co., Ltd. is one of the most reliable manufacturers and suppliers of concrete hollow brick machine in China. If you're going to buy high quality concrete hollow brick machine, welcome to get pricelist and quotation from our factory. For price consultation, contact us.





The Advantages Of Cement Free Brick Machine



1, Hydraulic System: hyHydraulicress brick making machine

adopts advanced hydraulic double proportional control technology, which can easily control the pressure and oil volume of any branch of the hydraulic system, so that different raw materials can be used to produce the same high-quality products.

2, Electronic Control System: The whole process of cement brick machine PLC intelligent control, equipped with data input and output device, to achieve the ideal man-machine dialogue. The control system also includes advanced safety logic control and fault diagnosis system. (Remote control is optional).

3, The Distribution System: Cement brick machine unique forced distribution mechanism and adapt to different mold cavity changes of the special arch rod play a forced arch breaking and secondary mixing effect, can greatly ensure the large amount of fly ash cloth uniform.

4, Vibration System:Cement brick machine adopts special technology to optimize the arrangement of vibration shaft, so that the vibration is evenly distributed in the whole range of the table, so as to greatly improve the consistency and stability of product performance, and make higher quality products in the same proportion, while effectively reducing noise. The unique design form of the fixed table can improve the molding speed and the accuracy of the product size.

5, Mold once casting molding cement free burning brick machine through carburizing treatment, each group of molds can be replaced separately in use; This mold can be refurbished to greatly reduce the cost of mold use.

6,The arm rigid synchronous mechanism cement brick free burning machine to ensure that the mold does not cause damage to the formed brick.





Mixer model	Model JS500	Discharge capacity	500L
Overall power	52kw	Feed capacity	800L
Machine weight	8T	Theoretical product	>25m³:/h
Overall dimension	12250x1806x2970mm	Cycle time	72S
Executive standard	GB/T1071-2015	Discharge height	1.5 m







(1) Cement free brick machine avoid moisture hardening, moisture hardening cement will decline and even lose the original strength, so the code rules, factory more than 3 months of cement should review the experiment, according to the experimental results. For cement that has been wet or hard, it must be used after screening, and the screened mass is usually used for secondary masonry mortar or plastering mortar after rolling or grinding. For cement clumps that are powdered by a touch or a pinch, the strength level can be appropriately reduced.

2) Cement free brick machine avoid negative temperature freezing, concrete or mortar mixed, if frozen, the cement can not be hydrated, and water icing and swelling, the concrete or mortar will be gradually deepened from outside to inside the powder damage, so should strictly follow the "construction procedures for winter construction" (JGJ104-97) for construction.

(3) Avoid the bottom dirty and soft, cement can be firmly bonded or wrapped together with the consolidation and clean bottom, but its bonding strength is related to the brightness of the bottom face. In the construction of the bottom layer of lubrication, it is necessary to chisel the wool in advance, smashing the hemp brush, in order to make the cement and the bottom solid bond. The dirt, greasy, acid and alkali substances on the bottom will have a barrier effect, it is necessary to carefully remove and wash, and then brush a plain cement slurry, and then spread mortar or concrete. Cement should be shortened during the solidification process, and in the process of dry and wet, cold and hot change, it is not accustomed to the volume change of the lax and weak bottom layer, and must attack empty drums or present cracks, and then difficult to bond. Therefore, wood, slag cushion and lime soil cushion can not be firmly bonded with mortar or concrete.

(4) Cement free brick machine avoid water and ash thick, we often ignore the impact of water consumption on the strength of concrete, in order to facilitate pouring and ramming, sometimes do not carefully implement the cooperation ratio, and the concrete is mixed very thin. Because hydration requires only about 20% of the weight of the cement, the remaining water transpiration will leave many pores in the concrete, these pores will reduce the strength of the concrete. Therefore, under the premise of ensuring the density of pouring, the mixing water should be reduced. Many people think that the more cement used in plastering, the stronger the plastering layer. Originally, the more cement used, the thicker the mortar, the greater the reduction in the volume of the plaster layer, and then the more cracks occur.

(5) The cement brick machine should not be exposed to the sun and dry quickly, and the concrete or plaster will be exposed after the operation, and its strength will decrease or even be completely lost with the agile transpiration of water. Therefore, before construction, it is necessary to strictly clean and fully wet the bottom; After construction, it should be strictly covered up and maintained by sprinkling water according to the regulations.

(6) Cement brick machine avoid high temperature incandescent, solidified mortar layer or concrete components, such as often under high temperature incandescent conditions, there will be strength loss, this is because under high temperature conditions, calcium hydroxide in cement stone will differentiate; In addition, some aggregates will also differentiate or expand in volume at high temperatures. For situations where the temperature is high for a long time, refractory bricks can be used to block ordinary mortar or concrete. In the event of higher temperatures, special heat-resistant concrete should be selected for pouring, and a certain amount of ground heat-resistant data can also be incorporated into the concrete.

(7)Cement free brick machine avoid the aggregate is not pure, as concrete or cement mortar aggregate sand, if there is dust, clay or other organic impurities, will affect the bond strength between cement and sand, stone, and thus reduce the compressive strength. Therefore, if the impurity content exceeds the standard rules, it is necessary to clean it before it can be used.







Cement bricks protect China's precious land resources, but also to achieve the reuse of resources, such as everyone is considered to be garbage slag, slag, construction waste, etc., through the brick making machine equipment can be converted into free brick, so as to achieve the recycling of resources, which is why the state issued relevant policies, vigorously support the development of cement brick market reasons. The quality of cement brick is not only inferior to the original red brick, but also far exceeds the strength of red brick.



1, Reasonable design, the use of automatic transfer board system, feeding, forced cloth system, indenter synchronization and mold frame synchronization system, can automatically cycle production, high production efficiency, large brick output, product quality stability.

2, The equipment machine, electrical, hydraulic linkage, PLC control, program interlock self-protection, safe and reliable operation, the main console computer interface operation (Chinese/English menu, LCD touch screen), can achieve the machine parameter setting, random signal acquisition, fault diagnosis and analysis, the machine adjust to the best working state. Remote monitoring, fault inquiry and system upgrade can also be realized through remote communication.

3, Using hydraulic motor vibration, reasonable structure, reliable use, high vibration efficiency, organic combination of pressure and vibration, good product compactness.



Wide range of application, can produce standard brick, hollow brick, light brick, road brick and other concrete bricks.







Cement brick machine has a very wide range of applications in the industry today, but because it is a mechanical equipment, most of its internal parts are some vulnerable parts, for these vulnerable parts we not only need to pay more attention to the daily operation of cement brick machine production operations, but also in the daily inspection process can not be any carelessness. Because these vulnerable parts inside the cement brick machine have an important role, once the problem will affect the use of the entire equipment, so in order to ensure that our subsequent production operations can be smoothly carried out, we need to carefully inspect these vulnerable parts.



First of all, we need to check whether the parts of the cement brick machine are loose, and find that it is necessary to tighten or replace them in time. In the process of inspection, we can also clean up the dirt on the cement brick machine to avoid affecting the efficiency of our subsequent operation of the cement brick machine. Secondly, check whether the parts on the mold are loose, and arrange the parts of the mold. In the process of our finishing, we also need to pay attention to safety issues, and the upper and lower molds need to be covered with wood blocks; The second is to check whether the parts of the transmission are loose or not smooth after we start the cement brick machine, and it is found that the problem should be stopped immediately for testing to avoid the problem in the production process leading to more serious problems.
