Hydraulic Slope Protection Brick Equipment
Hydraulic Slope Protection Brick Equipment The equipment for producing hydraulic slope protection bricks is a vibration-compression, non-fired concrete molding machine. By changing molds, it can produce various types of slope protection blocks for river channels, reservoirs, and embankments. It...
Features
Langfang Nianpeng Mechanical Equipment Processing Co., Ltd. is one of the most reliable manufacturers and suppliers of hydraulic slope protection brick equipment in China. If you're going to buy high quality hydraulic slope protection brick equipment, welcome to get pricelist and quotation from our factory. For price consultation, contact us.
Hydraulic Slope Protection Brick Equipment
|
|
|
|

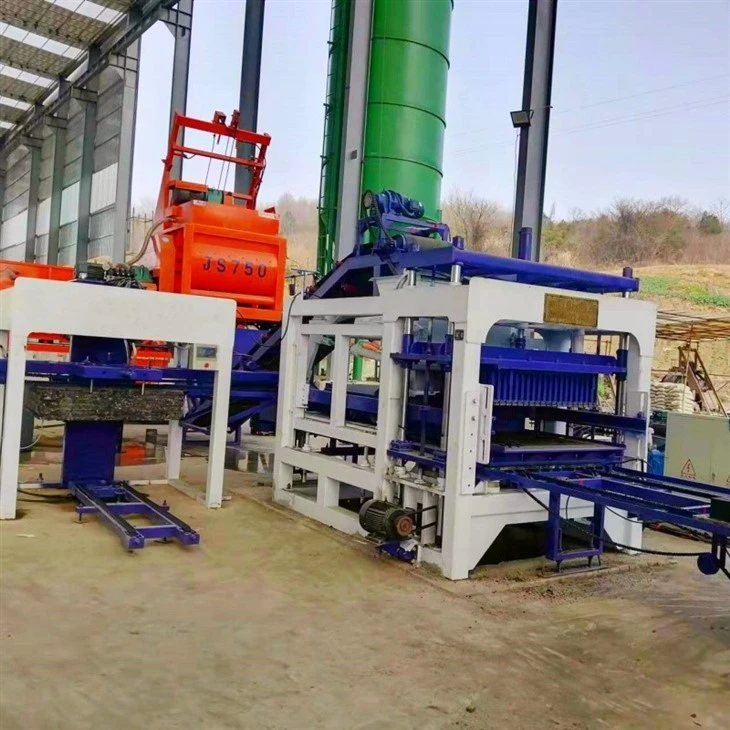

The equipment for producing hydraulic slope protection bricks is a vibration-compression, non-fired concrete molding machine. By changing molds, it can produce various types of slope protection blocks for river channels, reservoirs, and embankments. It utilizes raw materials such as sand and gravel, stone dust, fly ash, and slag mixed with cement. The process eliminates the need for firing, employing high-pressure vibration molding with dry-stiff concrete; the finished products achieve strength grades of C25–C40, meeting hydraulic requirements for erosion resistance.
Vibration System:
For slope protection blocks with a thickness of 80–200 mm, a vibrating table with high excitation force and an external multi-axis vibration setup are mandatory; otherwise, issues such as internal honeycombing and insufficient strength will occur, leading to failure to pass inspection for water conservancy projects.
Hydraulic system:
Molding pressure of 20–32 MPa; given the large volume of hydraulic engineering blocks, the cylinder stroke is sufficient to accommodate extra-tall molds (allowing for a maximum brick height of 500–700 mm).
Concrete placement mechanism:
Dual articulated arm / reciprocating distribution. Uneven concrete distribution is a common issue with irregularly shaped slope protection molds; therefore, precise control of the distribution trolley's travel and encoder settings is crucial to prevent corner gaps and voids.
Molds:
Slope protection bricks often feature complex, non-standard shapes, and the molds are made of wear-resistant cast steel; the dimensional precision of the interlocking joints and chamfers directly determines the fit and engagement of the assembled blocks.
Control System:
Programmable PLC capable of storing multiple recipes; servo-driven model featuring closed-loop control of vibration and pressure, resulting in superior product consistency and lower energy consumption.
Aggregates, stone dust, and fly ash + cement → quantitative batching via batching machine → mixing into stiff-consistency concrete → belt conveyor transport to main machine hopper → material distribution into molds → vibration + hydraulic pressing/molding → demolding and transfer to pallets → transport and stacking → natural curing (1–3 days) → finished slope protection bricks.
For external contracts on water conservancy projects, choose a fully automatic brick machine with an automatic palletizer to ensure high efficiency and consistent product quality; For producing precast components solely for your own construction sites, opt for a small, semi-automatic production line to minimize investment costs; Key specifications to verify include the equipment's maximum molding height, pallet dimensions, and vibration force, ensuring compatibility with the slope protection brick sizes you frequently produce; Raw materials can include stone dust, tailings, and solid construction waste, which lowers production costs and meets
environmental standards.
Practical tips for extending the service life of hydraulic slope-protection brick equipment: Avoid prolonged operation exceeding the rated pressure when producing thick slope-protection bricks; Tighten all anchor bolts every three months; vibration can loosen them, which is a primary cause of frame cracking; Strictly adhere to the schedule for replacing hydraulic oil and filter elements, and monitor oil temperature; Regularly apply grease to the vibration bearings; Promptly repair worn molds, as worn molds increase the impact load on the entire machine.
