Cement Colored Brick Making Machine
Cement brick making machine equipment The cement colored brick machine is a non-fired hydraulic brick-making equipment. It uses sand, stone powder, fly ash, slag, construction waste, and cement as raw materials, combined with colorants layered and distributed, and then vibrated and pressurized...
Features
Langfang Nianpeng Mechanical Equipment Processing Co., Ltd. is one of the most reliable manufacturers and suppliers of cement colored brick making machine in China. If you're going to buy high quality cement colored brick making machine, welcome to get pricelist and quotation from our factory. For price consultation, contact us.
Cement brick making machine equipment
The cement colored brick machine is a non-fired hydraulic brick-making equipment. It uses sand, stone powder, fly ash, slag, construction waste, and cement as raw materials, combined with colorants layered and distributed, and then vibrated and pressurized into a single piece. No sintering is required; it produces colored paving bricks through natural curing. These are widely used in municipal sidewalks, residential landscaping, and permeable paving in sponge city projects. By changing the matching molds, it can flexibly produce dozens of brick types, including paving bricks, Dutch bricks, permeable bricks, grass pavers, tactile paving bricks, and curb stones, achieving multi-purpose functionality.
01
High utilization rate of solid waste
The blending ratio of fly ash, tailings slag, and construction waste can reach 70% to 90%, which is in line with the environmental protection policy for solid waste recycling and has low raw material costs.
2
Stable quality of finished products
The compression-vibration combined process ensures that the colored bricks have a compressive strength of ≥30MPa, meet the water permeability standards, and are wear-resistant and frost-resistant.
03
Short production cycle
The equipment can be installed and debugged on-site in 3-7 days and put into production. The bricks can be sold after drying in 3-7 days, resulting in a fast return on investment.
04
Flexible for model changes
A single main unit only requires changing the mold to quickly switch between various brick types and adapt to changes in market orders.
Hydraulic lifting fabric machine

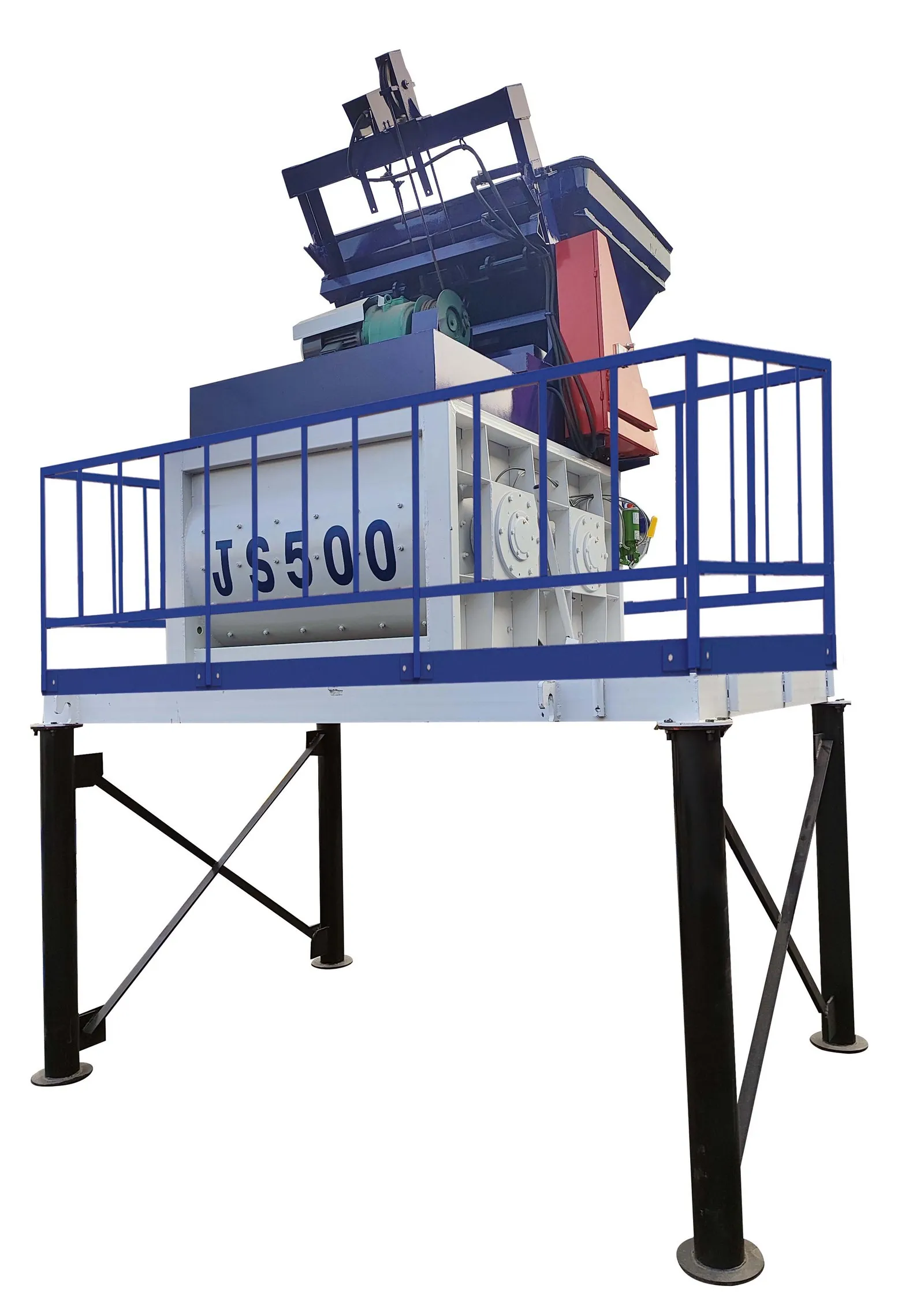

Forced mixer

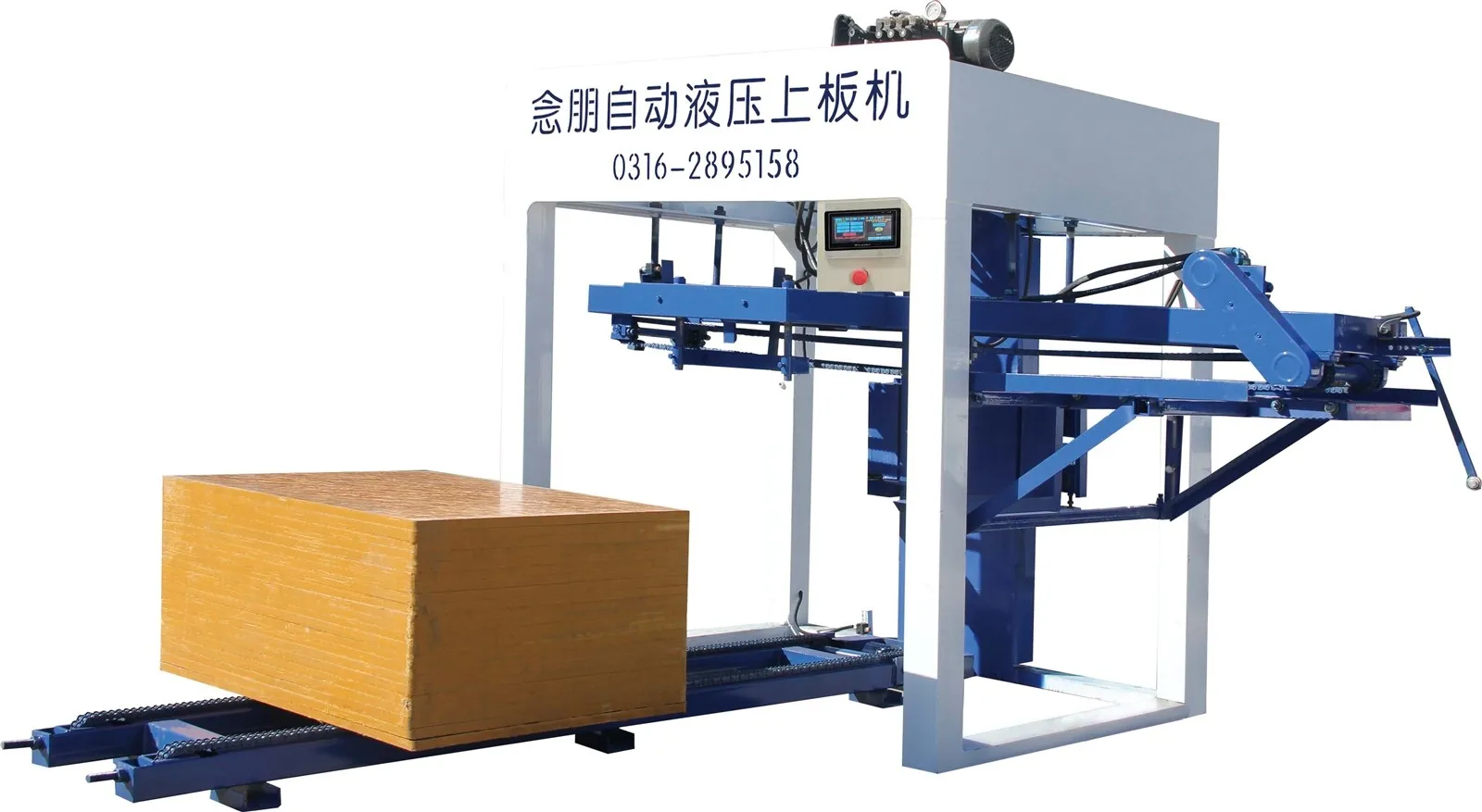

Fully automatic board loading machine

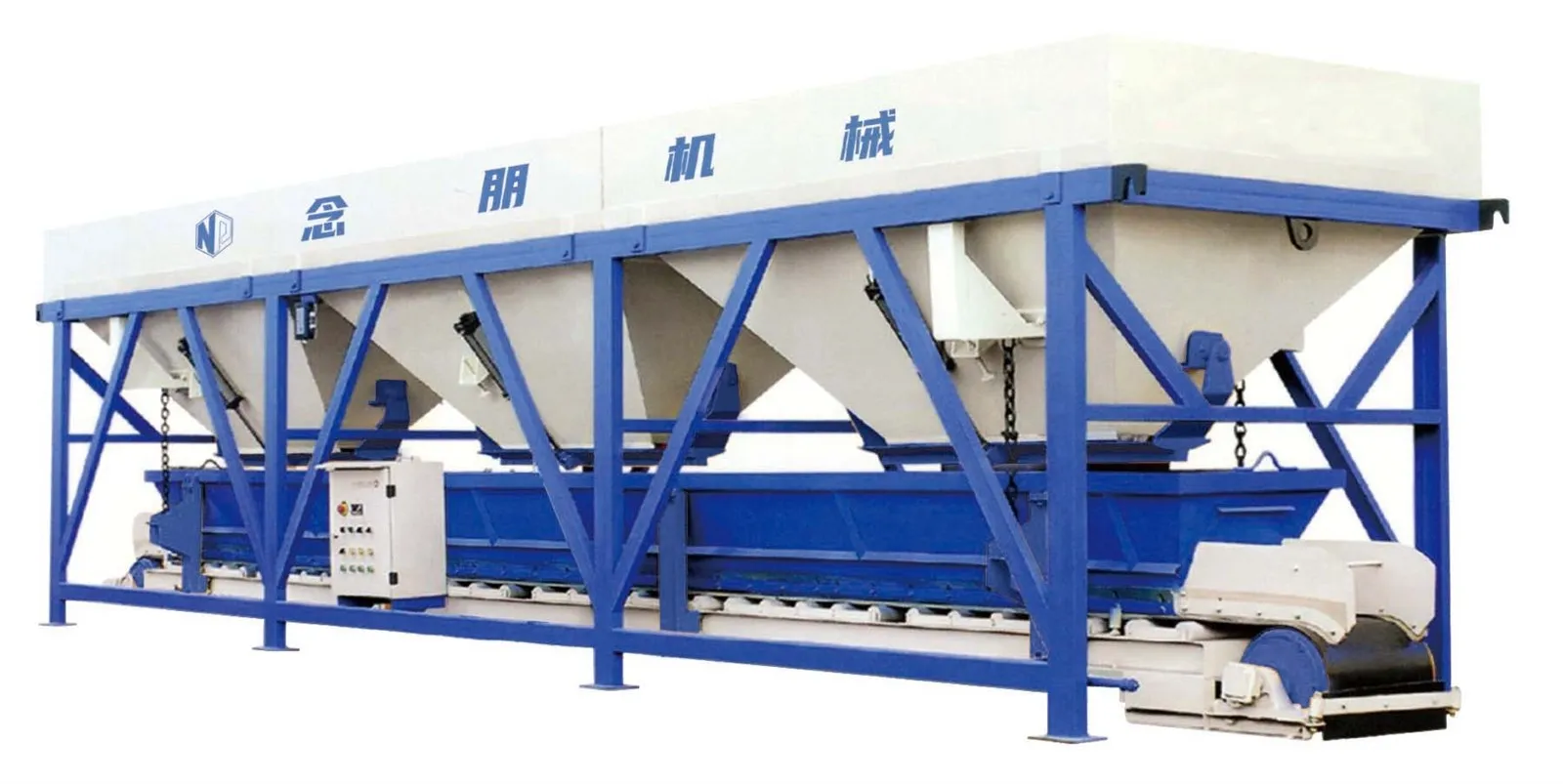

Linear batching machine

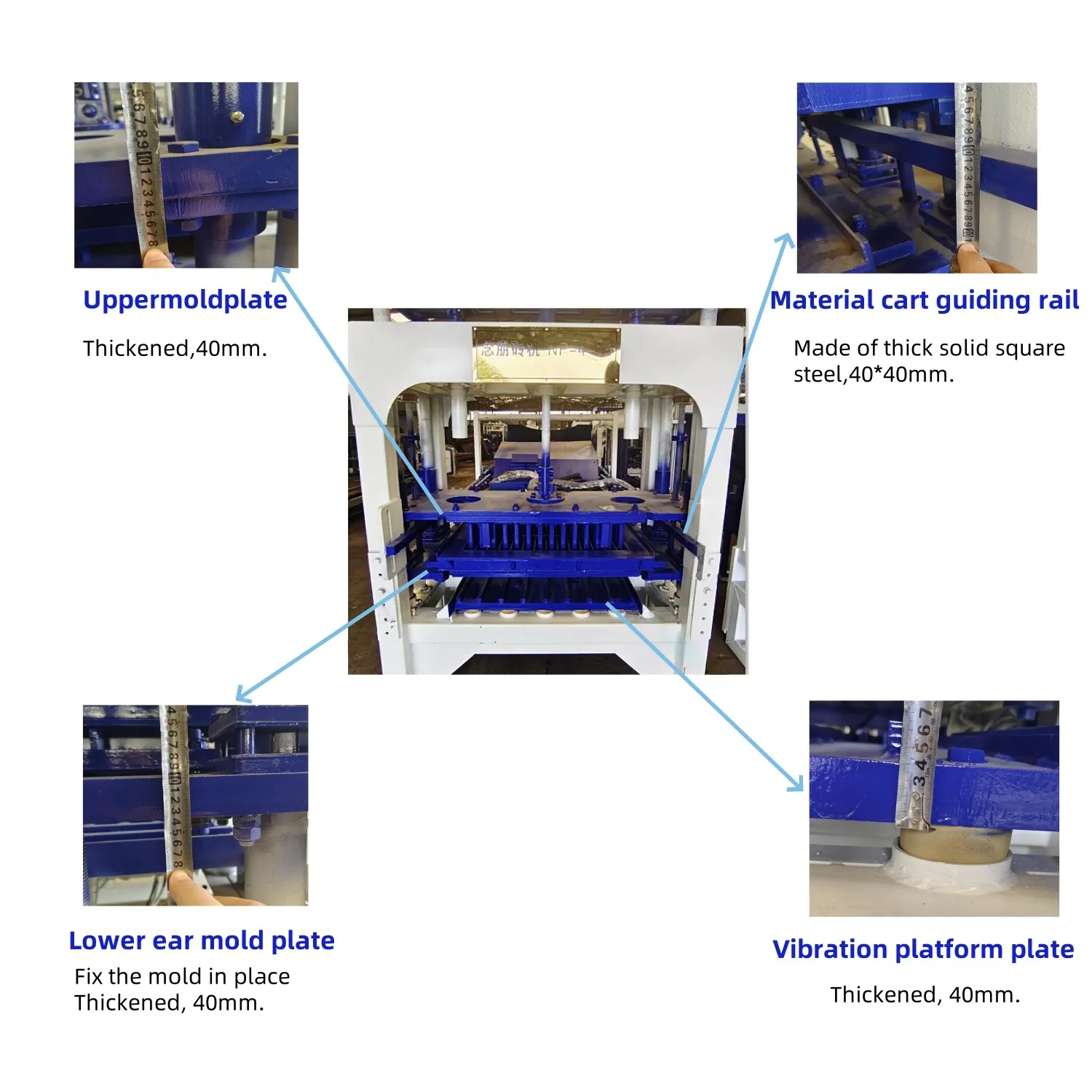

Core Structure Composition
The entire production line consists of five main parts: a batching and mixing system, a feeding conveyor, a double-layer material spreading machine, a main forming machine, a hydraulic pump station, an electrical control system, and a pallet transfer frame.
Double Material Spreading Mechanism: Independent material hoppers for feeding colored surface materials and bottom material hoppers for filling base materials; layered spreading ensures uniform color and prevents fading of the colored brick surface.
Variable Frequency Vibration System: Adjustable frequency excitation motor, 3800~4500r/min variable frequency vibration control, adaptable to different sand and gravel material ratios, eliminating brick layering and hollow areas. Hydraulic System: National standard hydraulic cylinders, conventional forming pressure 150~400T,
high-pressure mold locking improves brick density. Intelligent Electrical Control: Color touch screen + PLC program, one-button start/stop production, automatic fault alarm, high-end models support remote cloud debugging.
